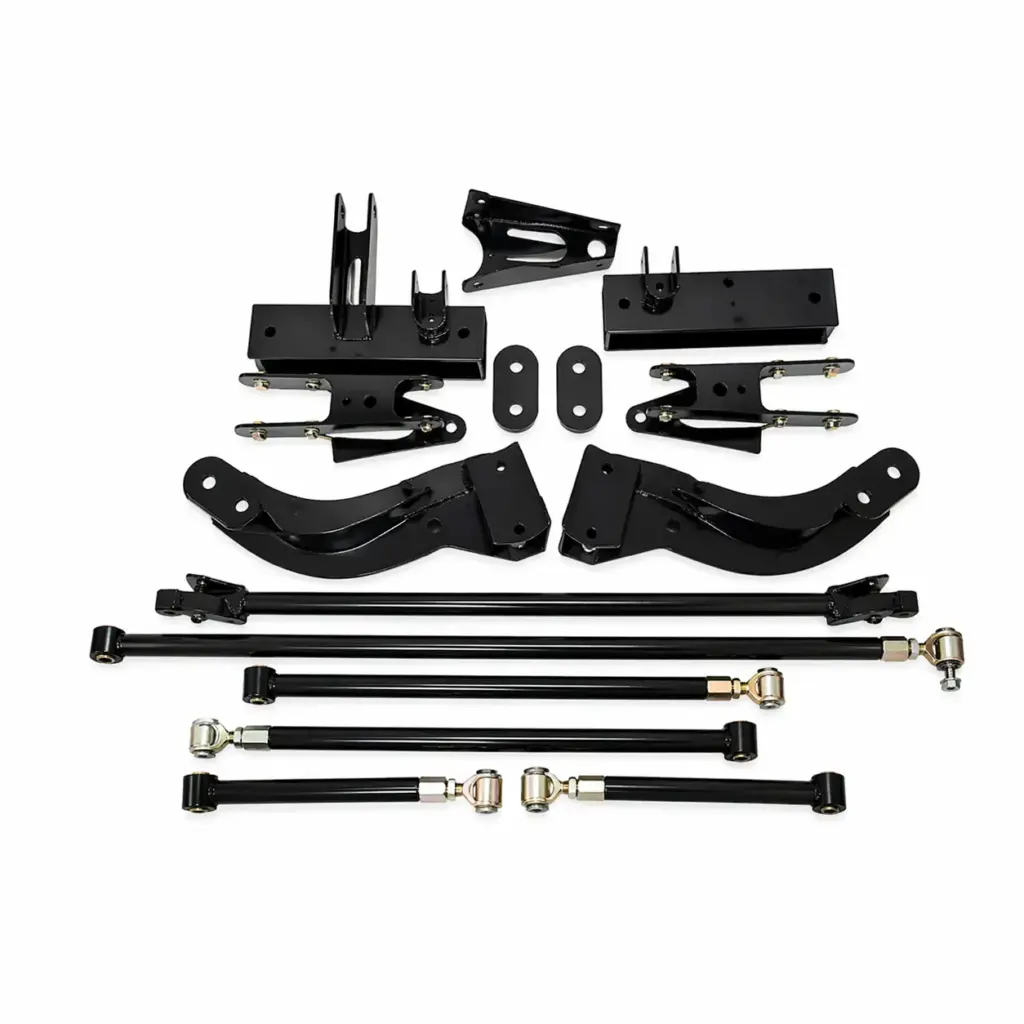

Mastodon 4-Link Suspension Kit 64-70 Mustang

Complete 4-link rear suspension system for the 1964–1970 Ford Mustang. Replaces the factory leaf-spring rear with a triangulated 4-link that gives modern handling, improved traction, and the geometry needed for serious power.

The triangulated design angles the upper link bars inward to eliminate the bind common with parallel 4-links, and the longer upper bars are mounted behind the axle to keep pinion movement under control. Mostly bolt-in installation — only four small tabs need to be welded to the top of the axle housing for the upper links.

Highlights:

• Type: Triangulated 4-link with coilover provision
• Fitment: 1964½–1970 Ford Mustang
• Axle compatibility: Ford 8" or 9" housings
• Ride height: 3 positions in 1" increments on the axle brackets, plus coilover adjustment
• Install: Bolt-in (4 small weld tabs for upper link mounts on axle)
