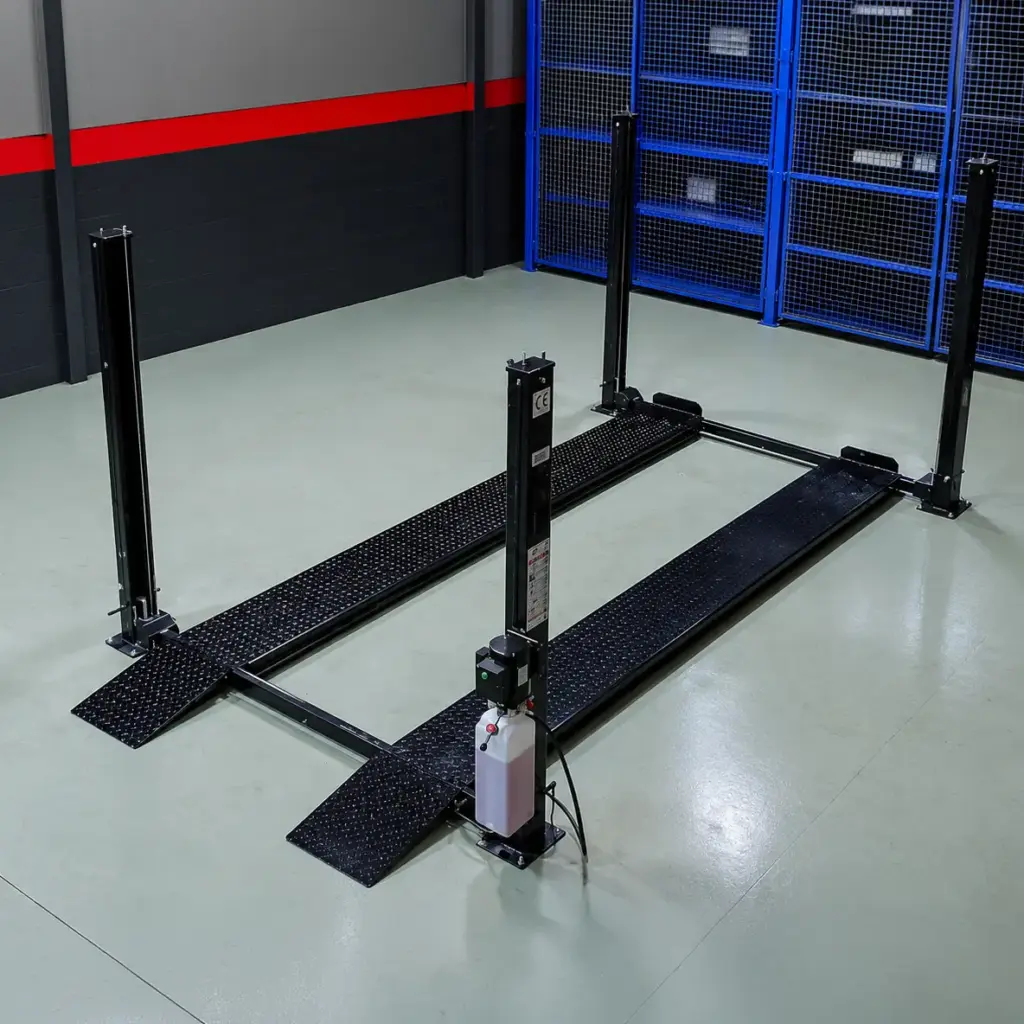

Mastodon FPP-2 Four Post Parking Lift
Overview
The Mastodon FPP-2 is a simple, reliable four-post parking lift designed primarily for home use — ideal for both parking and light vehicle servicing. Each unit parks 2 cars: one on the ground level and one on the raised platform. With a heavy-duty 3,600 kg lifting capacity it comfortably accommodates SUVs and large vehicles, using a hydraulic-driven system with a single cylinder and steel ropes. As a valet-style parking lift, the ground level must be cleared before lowering the upper platform. Available in two models: the standard FPP-2 and the taller FPP-2W for higher-clearance vehicles.
Key Features
- Home-use design — parks 2 cars per unit
- Two diamond-plate runways and ramps
- Single hydraulic cylinder with steel ropes
- Individual hydraulic power pack (2.2 kW)
- Self-standing, self-supporting structure
- Relocatable with castor kit
- Dynamic mechanical “all-the-way” anti-falling locks
- Free jacking tray and drip trays included
- 3,600 kg capacity — suitable for heavy SUVs
- Manual operation and lock release
- Hydraulic overload protection
- Powder-coated finish for indoor/outdoor use
Specifications
| Specification | FPP-2 | FPP-2W |
|---|---|---|
| Lifting Capacity | 3,600 kg | 3,600 kg |
| Equipment Weight | 790 kg | 880 kg |
| Platform Height (h1) | 1,840 mm | 2,090 mm |
| Overall Height (h2) | 5,540 mm | 6,030 mm |
| Power Pack | 2.2 kW hydraulic power pump | |
| Electrical | 220–420V, 1 or 3 Phase, 50/60Hz | |
| Lifting / Lowering Time | 50 / 45 seconds | |
| Finishing | Powder coating (laser cut & robot welded) | |
Safety Features
- Overload-protection hydraulic pack — prevents operation beyond rated capacity
- “All-the-way” anti-falling locks at every height
- Back fence to prevent vehicles rolling off the platform
- Anti-skid diamond-plate runways
- Steel cables rated at 7× the working load
Requires a level concrete foundation (recommended pad ≈ 4,754 × 3,004 mm with anchor pads at the column positions).
